Portable Busbar Machine

DXJ™ 3-in-1 portable busbar machine integrates punching, cutting, and bending into a compact, lightweight design with ±0.1mm accuracy. Ideal for on-site construction and emergency maintenance, it delivers efficient field fabrication for switchgears.

Home ➜ Products ➜ Portable Busbar Machine

DXJ | High-Quality Portable Busbar Machine Manufacturer & Supplier

DXJ is a professional manufacturer and supplier of high-quality portable busbar processing machines located in Jinan, China. With over 16 years of experience, we specialize in designing, producing and exporting three-in-one portable busbar machines that integrate bending, cutting and punching functions. Our busbar equipment is light, compact and easy to carry, making it ideal for on-site construction, emergency maintenance and limited space workshops. It is widely used in switch cabinets, substations, bus ducts and electrical cabinet manufacturing.
We adhere to strict quality control standards and use high-quality components and advanced hydraulic technology to ensure high accuracy (±0.1mm), stable performance, and long service life. As a trustworthy Chinese portable busbar machine factory, we provide competitive prices, customized solutions and comprehensive after-sales services to global customers.

Send Us A Message

How to buy a suitable Portable busbar machine

Based on the specific thickness and width of your materials, our technical engineers will recommend the ideal machine configuration to match your exact needs. The DXJ™ portable busbar machine series features three distinct models engineered for versatile field fabrication:

· DXJ-150: Designed for standard applications, capable of processing busbars with a maximum thickness of 10mm and a width of up to 150mm.

· DXJ-200A: Offers enhanced capacity, effortlessly handling heavy-duty busbars with a maximum thickness of 12mm and a width of up to 200mm.

· DXJ-200B: A modified variant of the DHY-200A, this specialized model adds support for vertical bending and is rated for a maximum busbar thickness of 10mm and a width of up to 125mm.

Model	DXJ-150	DXJ-200A	DXJ-200B
Max Bending Width/Thickness	10mm/150mm	12mm/200mm	/
Max Vertical Bending Width/Thickness	/	/	10mm/125mm
Bending Hydraulic Output	18Ton	30Ton	35Ton
Max Cutting Width/Thickness	10mm/150mm	12mm/200mm	12mm/200mm
Cutting Hydraulic Output	15Ton	20Ton	20Ton
Max Punching Width/Thickness	10mm/150mm	12mm/200mm	12mm/200mm
Punching Hydraulic Output	31Ton	35Ton	35Ton
Throat Depth	95mm	110mm	110mm
Rated Pressure	70MPa(high)/ 7Mpa(low)	70MPa(high)/ 7Mpa(low)	70MPa(high)/ 7Mpa(low)
Rated Flow	0.8L/min(high), 2.5L/min(low)	0.8L/min(high), 2.5L/min(low)	0.8L/min(high), 2.5L/min(low)
Oil Tank Capacity	7L	7L	7L
Motor Power	750W	750W	750W
Current	3.5A	3.5A	3.5A
Voltage	220V 50HZ	220V 50HZ	220V 50HZ

What are the functions of Portable busbar machine?

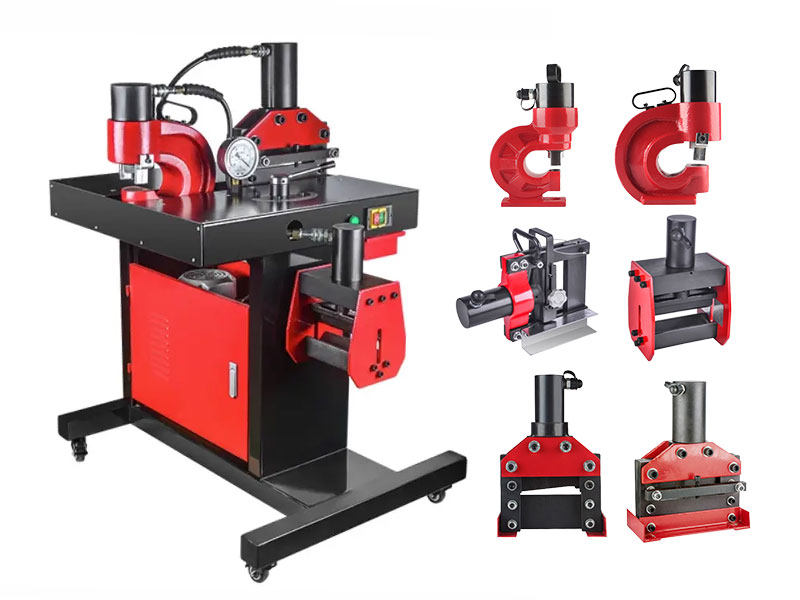

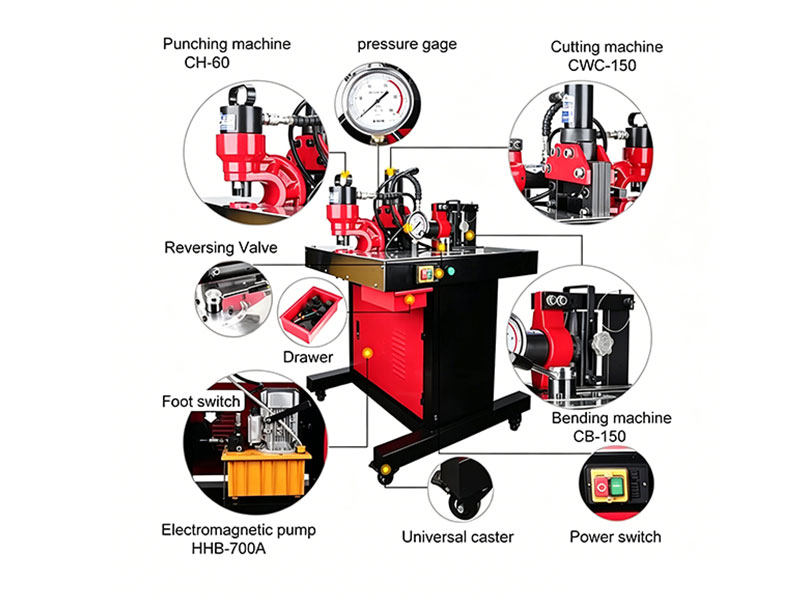

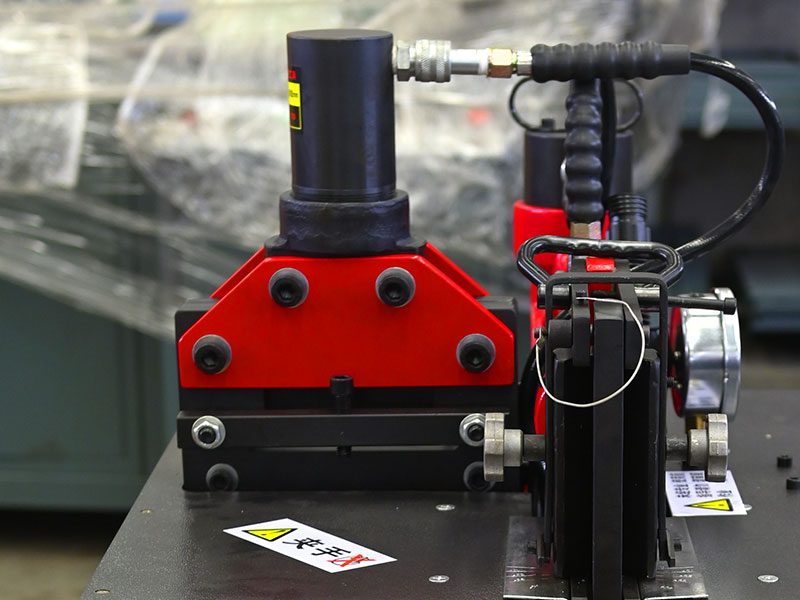

Our portable busbar machine integrates high-performance bending, punching, and cutting tools with a heavy-duty hydraulic pump. Featuring a compact and streamlined structure, it is perfectly engineered for demanding outdoor operations and power construction sites.

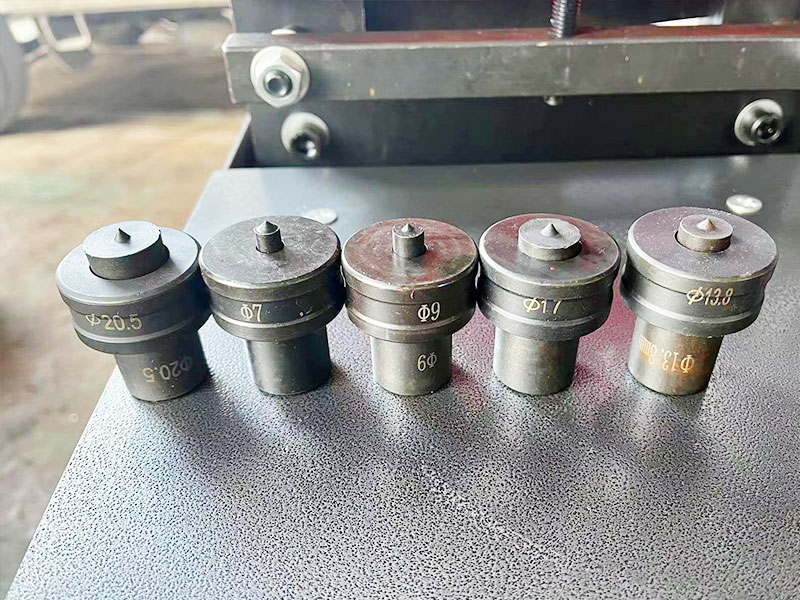

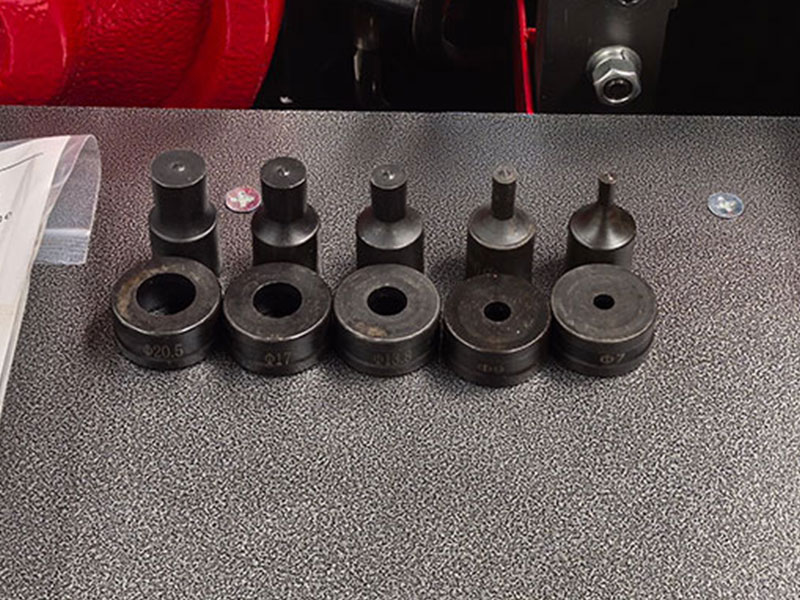

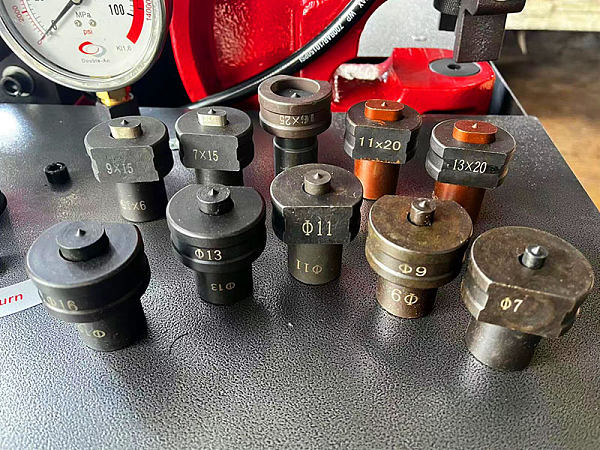

The hydraulic system utilizes an advanced solenoid valve pump to deliver constant, reliable power for seamless cutting, bending, and punching cycles. Compared to traditional hydraulic pumps, this solenoid valve configuration provides significantly higher output wattage and a substantially extended service life. To ensure immediate operational readiness, each DXJ™ machine comes standard with 5 sets of versatile punching dies, fully satisfying conventional on-site fabrication requirements as detailed in the table below:

Name	Specification
Punching Mold	Φ7, Φ9, Φ10.5, Φ13.8, Φ17, Φ20.5

How to use Portable busbar machine?

Preparation

Check & Setup: Inspect DXJ™ hydraulics and dies; prepare the correct copper/aluminum busbars.

Secure & Align: Place the busbar on the workbench and adjust fixtures for accurate alignment.

Operation

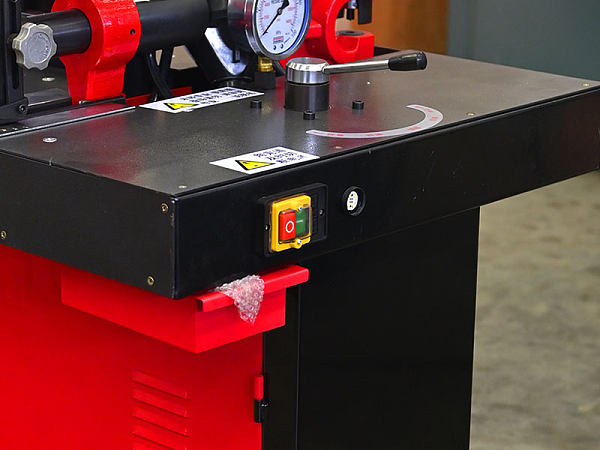

Select Unit: Turn the directional valve to the required cutting, punching, or bending station.

Execute: Turn on the hydraulic system and press the foot pedal to complete processing.

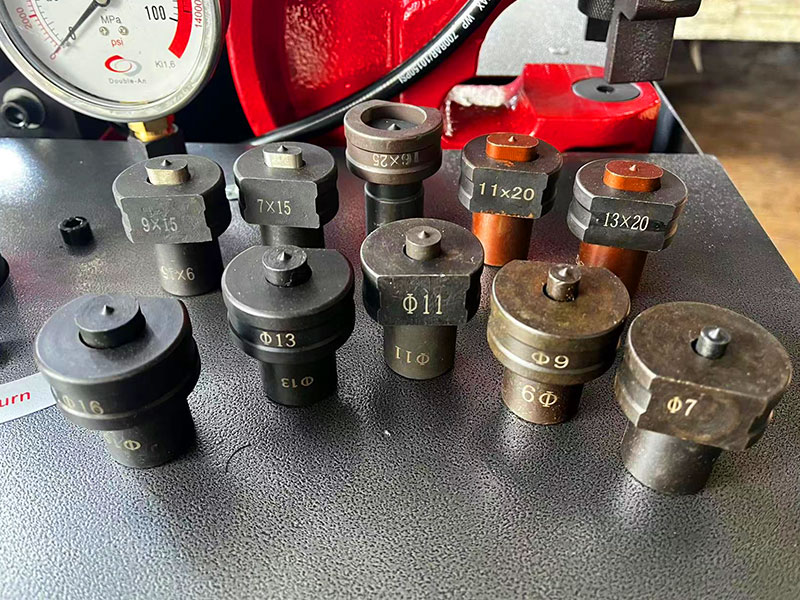

Please note that the actual punching capacity for the same die specification (e.g., Φ13) may vary across different DXJ™ machine models. Regardless of the equipment, we strictly recommend that the busbar thickness never exceed the die's rated limit—for instance, the maximum allowable processing thickness for a Φ7 die is 6mm.

Model	DHY-150	DHY-200A	DHY-200B
Φ7	2-6mm	2-6mm	2-6mm
Φ9	2-8mm	2-8mm	2-8mm
Φ10.5	2-10mm	2-10mm	2-10mm
Φ13.8	2-10mm	2-12mm	2-12mm
Φ17	2-10mm	2-12mm	2-12mm
Φ20.5	2-10mm	2-12mm	2-12mm

Where to buy Portable busbar machine?

In the global CNC busbar machine manufacturing sector, Chinese suppliers hold an unparalleled competitive edge in cost-effectiveness. As an industry-seasoned manufacturer in China, DXJ™ has established long-term strategic cooperation with world-renowned industrial giants such as ABB and Siemens. Together, we jointly develop and innovate advanced automation and complex busbar fabrication technologies, delivering versatile, intelligent busbar processing solutions to global electrical equipment manufacturers.

Driven by a vision of global collaboration, DXJ™ warmly welcomes international enterprises and switchgear manufacturing peers to visit our state-of-the-art busbar machine factory in China for technical exchanges, field inspections, and strategic partnerships.

Advantages of Portable Busbar Machine

Compact, highly mobile, and perfect for on-site installation and maintenance.

The defining feature of this DXJ™ busbar machine is its portability, allowing immediate on-site fabrication and emergency repairs without workshop transport. Combining split punching, cutting, and bending tools, it enables single-person operation in confined spaces and offers outstanding versatility for various copper and aluminum specifications.

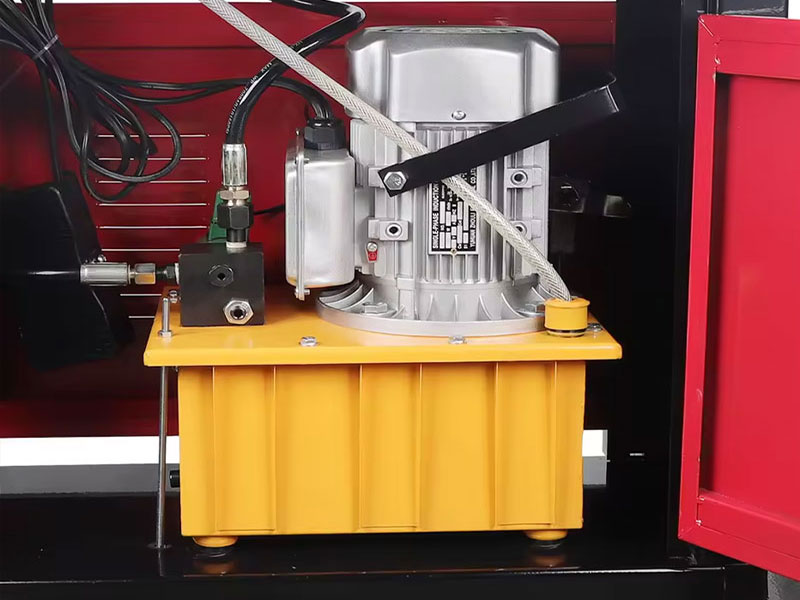

Efficient and durable solenoid valve pump drive for precise hydraulic control.

Our DXJ™ machine utilizes a solenoid valve pump for ultra-precise oil flow regulation, ensuring persistent and stable driving force. This delivers uniform stress during fabrication, producing perfectly smooth, burr-free busbar cross-sections.
Compared to traditional pumps, it switches on/off instantly to respond rapidly during on-site construction and emergency repairs. Its streamlined structure requires virtually no maintenance and effectively doubles the service life of the machine.
