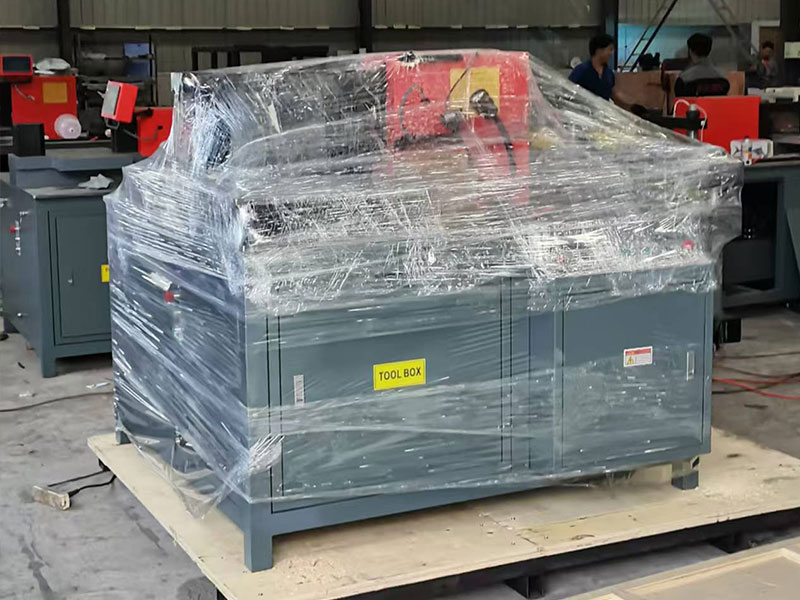

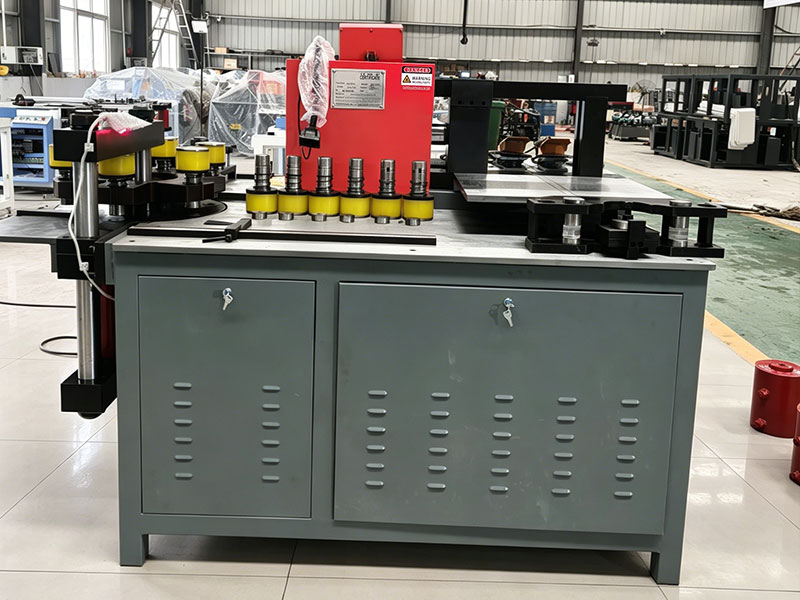

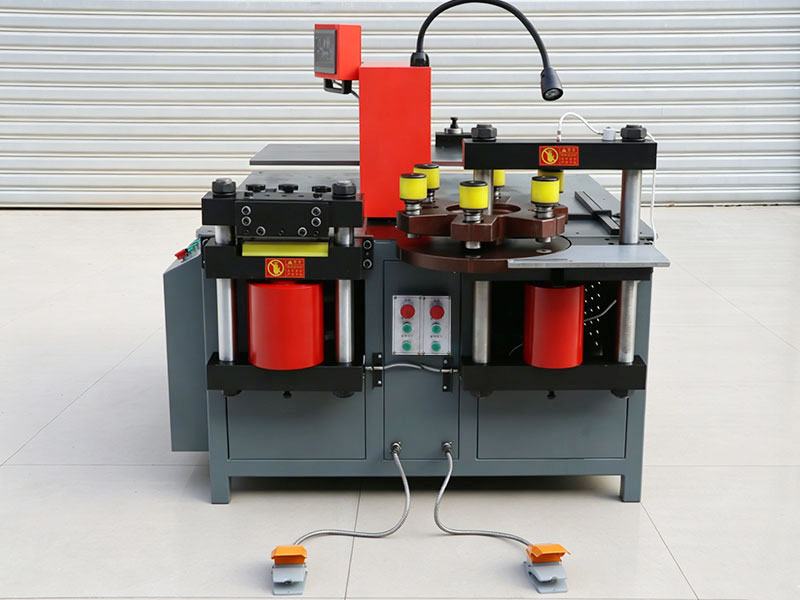

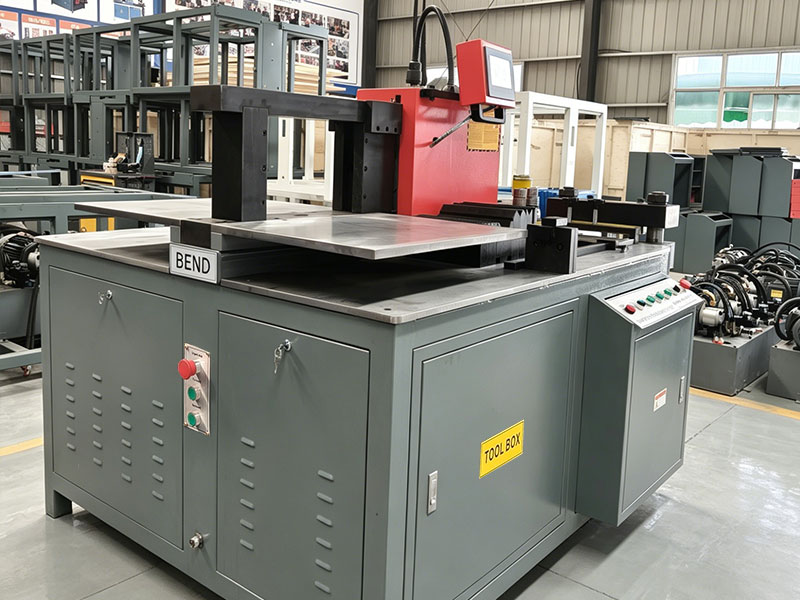

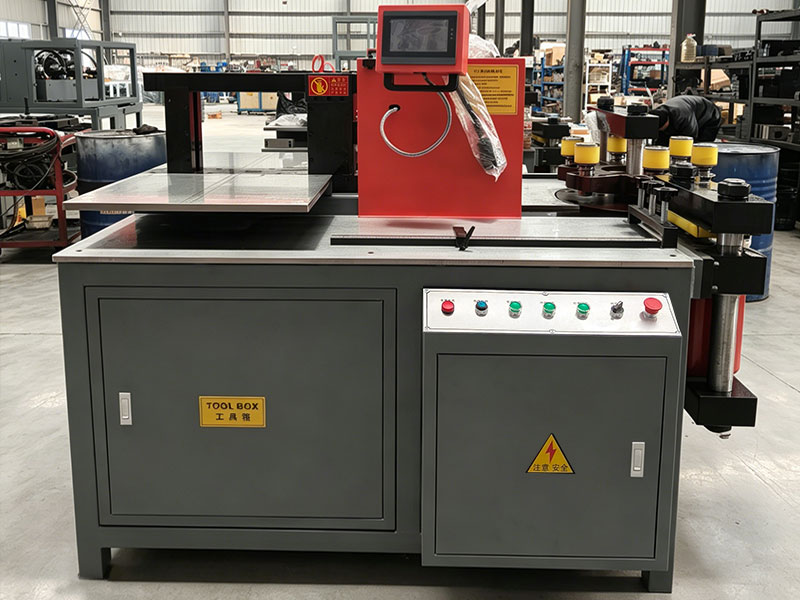

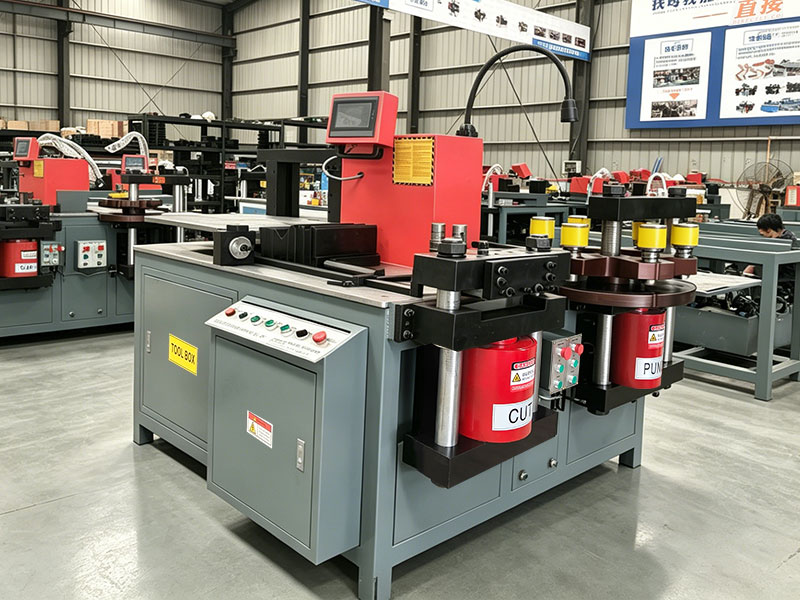

DXJ-50CN 3in1 Busbar Machine

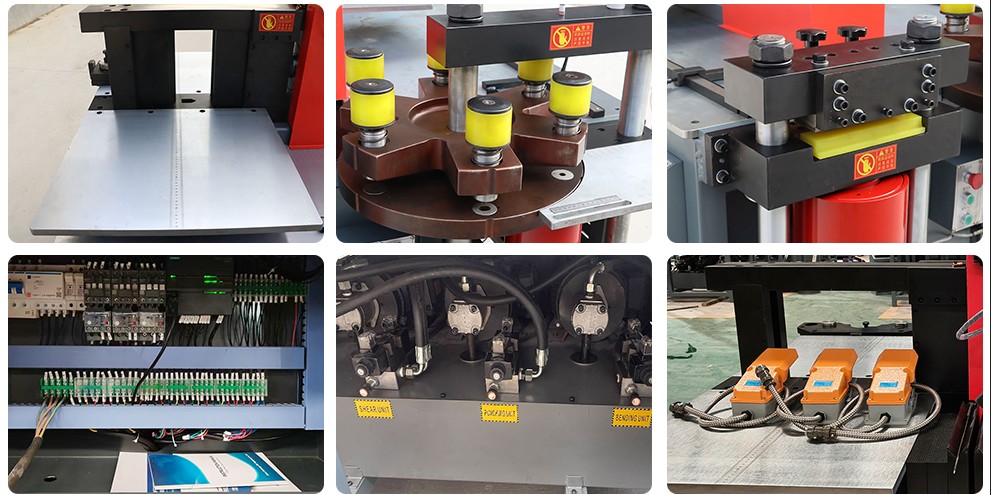

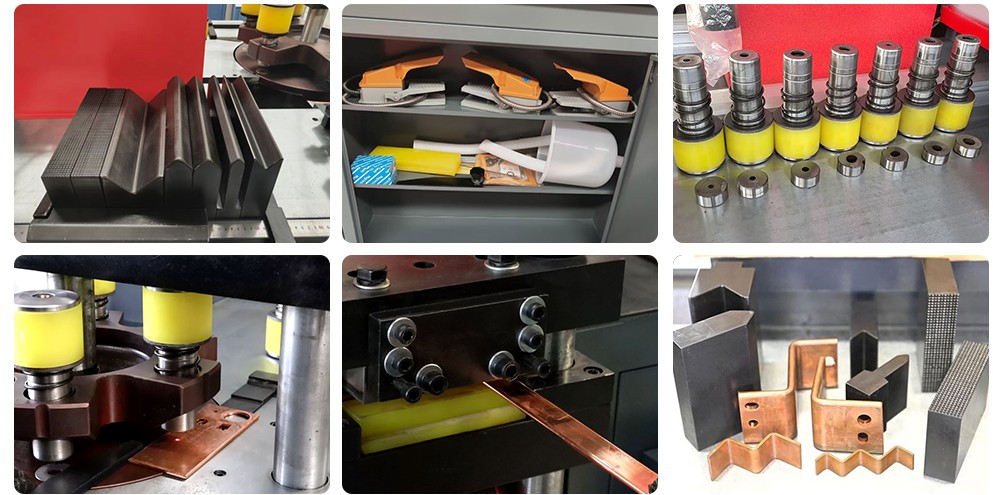

This DXJ-503ESK busbar processing machine has three independently working hydraulic stations for punching, shearing and bending. The three stations can work at the same time without affecting each other. The standard molds are complete: round holes Φ7/Φ9/Φ11/Φ13/Φ17/Φ21, oblong holes Φ13×18, Φ17×21, plus 3 sets of flat bends and 1 set of embossing.

The total diameter of the shearing station cylinder is 245mm/inner diameter 190mm/piston rod 120mm/shearing force 800KN. It can process copper and aluminum rows up to 260mm wide and 16mm thick. The punching adopts three positioning methods: laser + double scale + positioning pin. The punching molds have all passed the fatigue test, and 5,000 holes can be punched continuously without failure, 0.2 minutes/hole, and the minimum hole diameter is φ3.2mm. The maximum hole diameter is φ35mm. The bending accuracy is ±0.5°, the minimum processing is 3mm thick and 20mm wide, and the maximum processing is 16mm thick and 260mm wide. Double column shearing, smooth cross section, no burrs, no scrap, and no sagging corners. The 100% pure copper motor has a 5-year warranty, Cr12MoV punching die, and 45# forging and bending die, which are durable and wear-resistant. Siemens PLC control system, stable and reliable, direct angle input, with memory, supports English/Russian/Thai/Vietnamese languages.
