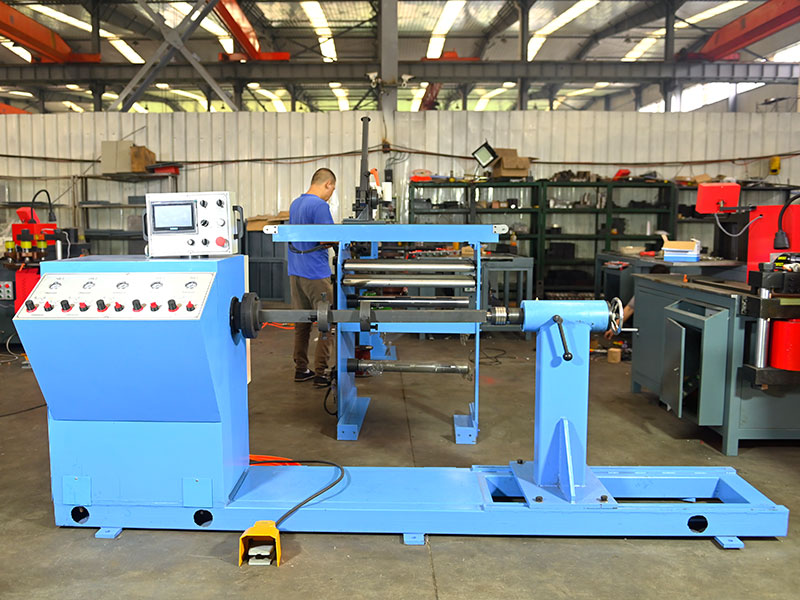

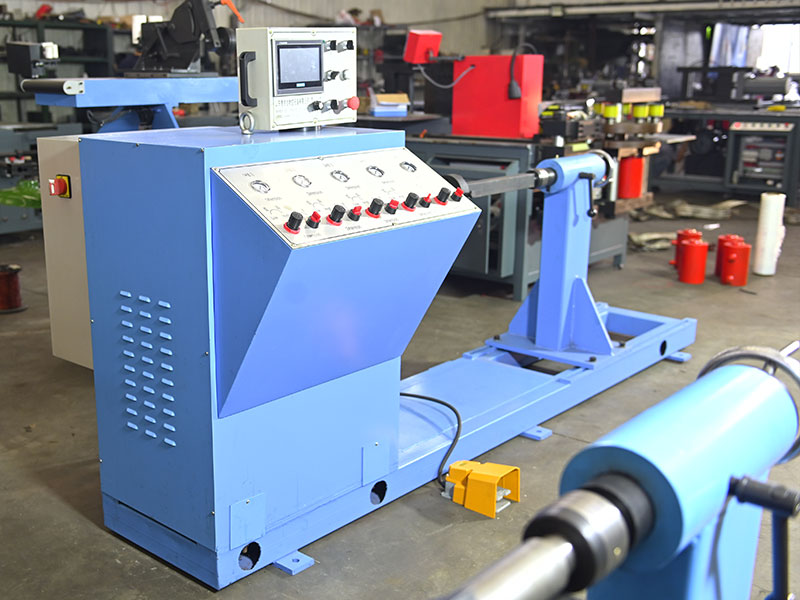

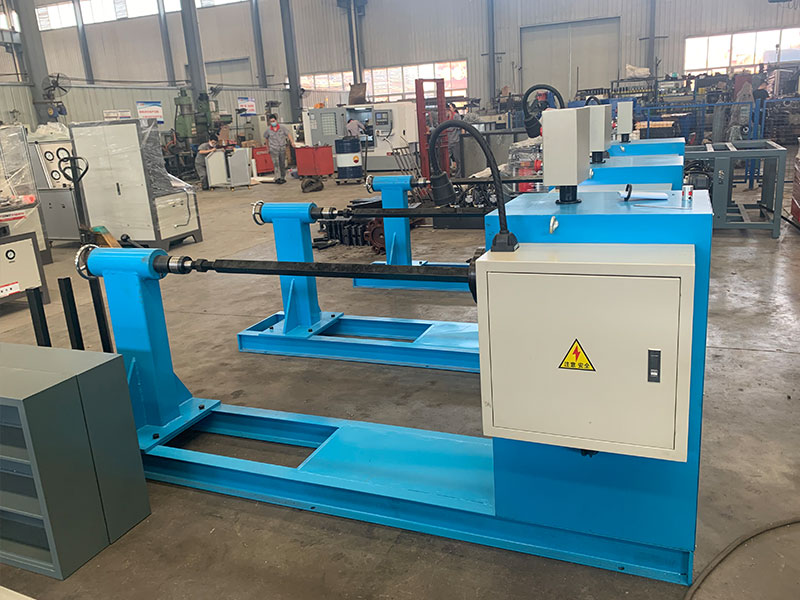

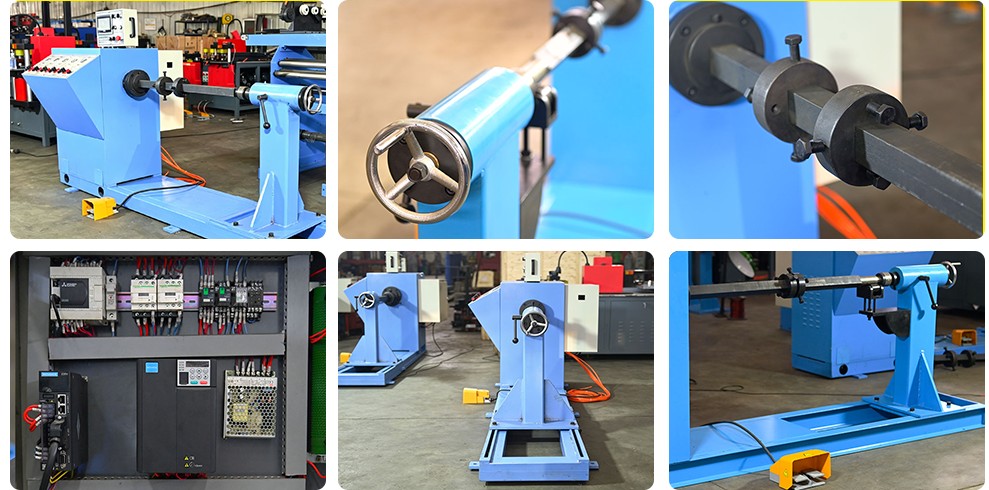

DXJ-RX1T Horizontal Coil Winding Machine (1 Ton)

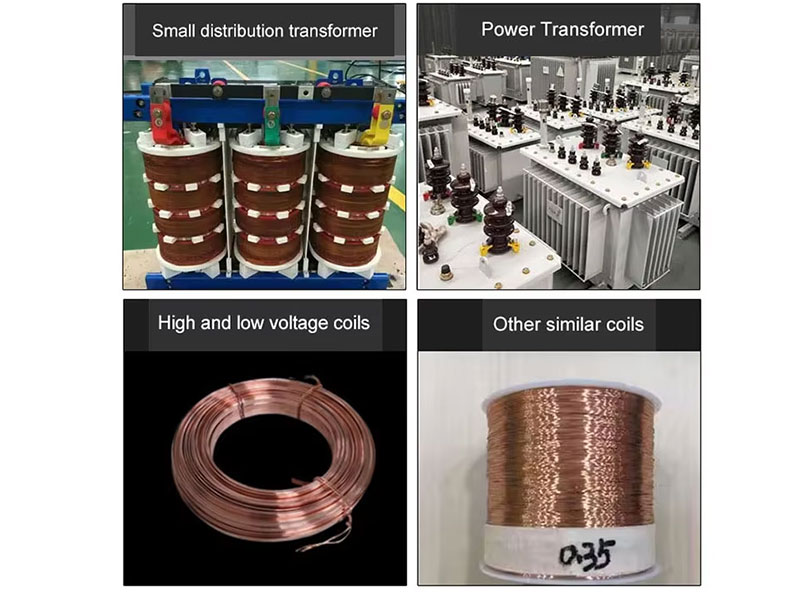

Model: DXJ-RX1T Horizontal Coil Winding Machine (1Ton), Mainly suitable for winding high and low voltage coils of reactors and transformers. Winding machine disc diamete 198mm, winding machine spindle center height 750mm.

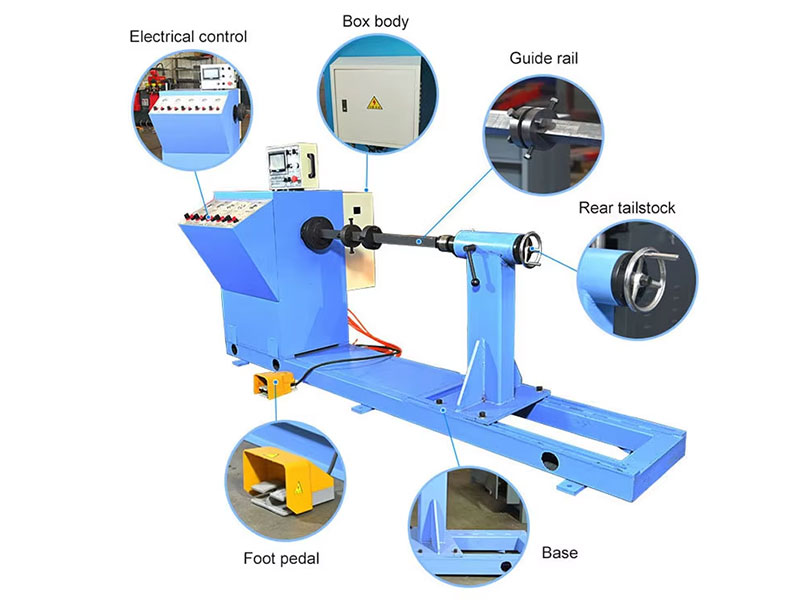

Composition of main chassis

The main engine box consists of a casing, transmission system, gear lever, motor, etc.

Structural features:

·The mechanical transmission part of the winding machine is located inside the headstock box, and the transmission part is installed on the operating side of the headstock box. Realize high and low changes in spindle speed through the variable speed lever.

·The winding machine adopts a frequency converter to achieve stepless speed regulation, with smooth start-up and constant torque. There are three positions for adjusting the gear lever: low speed position, neutral position, and high speed position; Set the number of laps, automatic parking.

·The machine is equipped with an automatic brake device to prevent reversing when the winding stops.

·This machine can preset the number of coil turns and control forward and reverse rotation; The electronic reversible counter has a forward and backward counting accuracy of 1/10 turn and a power-off memory function.

·The button station is centrally controlled, and the start and stop of the spindle disc are controlled by foot switches or buttons.
