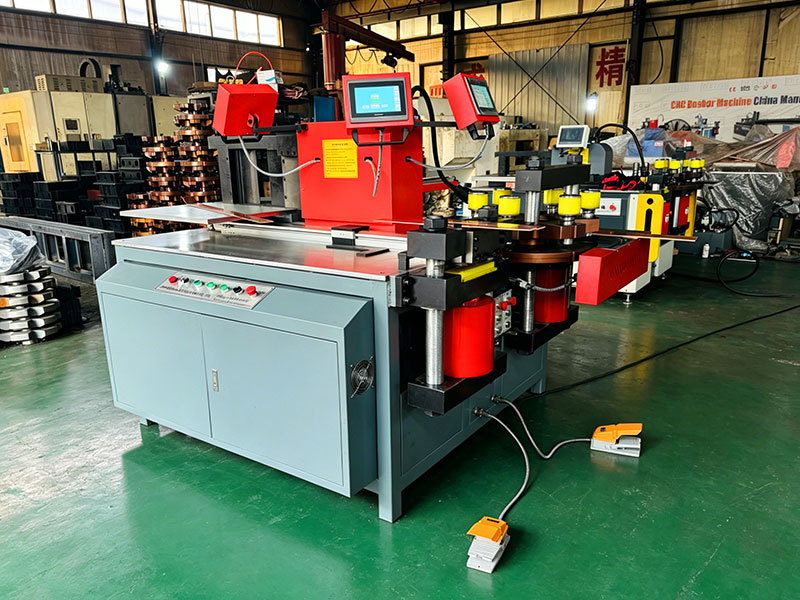

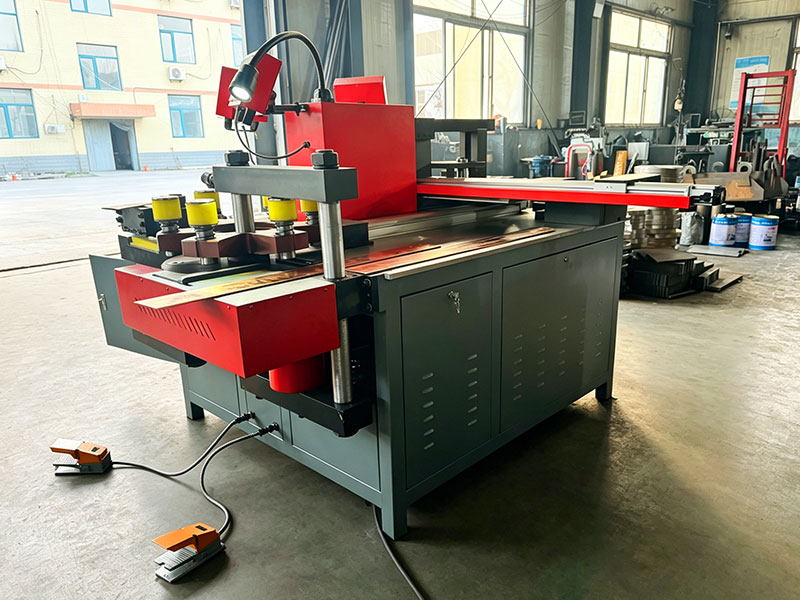

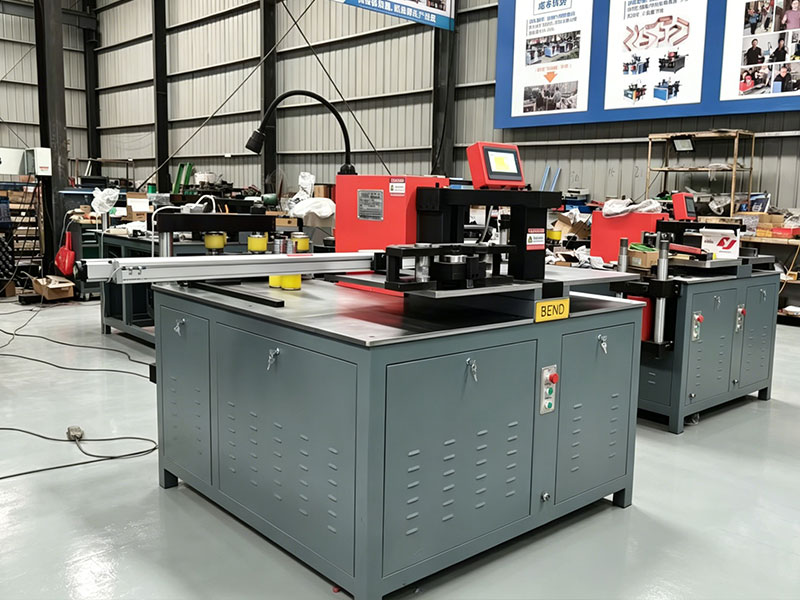

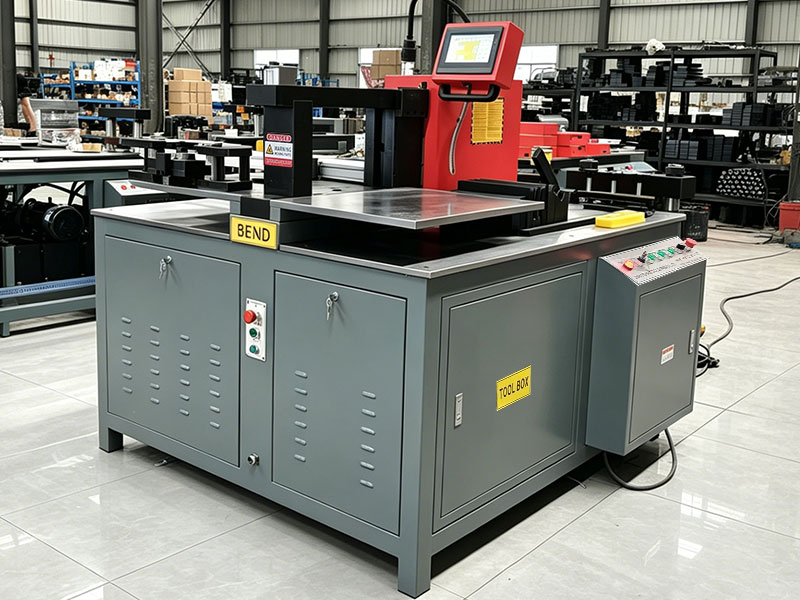

DXJ-80CN PRO CNC Busbar Processing Machine

Model: DXJ-803CN PRO CNC full servo positioning busbar processing machine, precise servo positioning, smaller errors and higher efficiency.

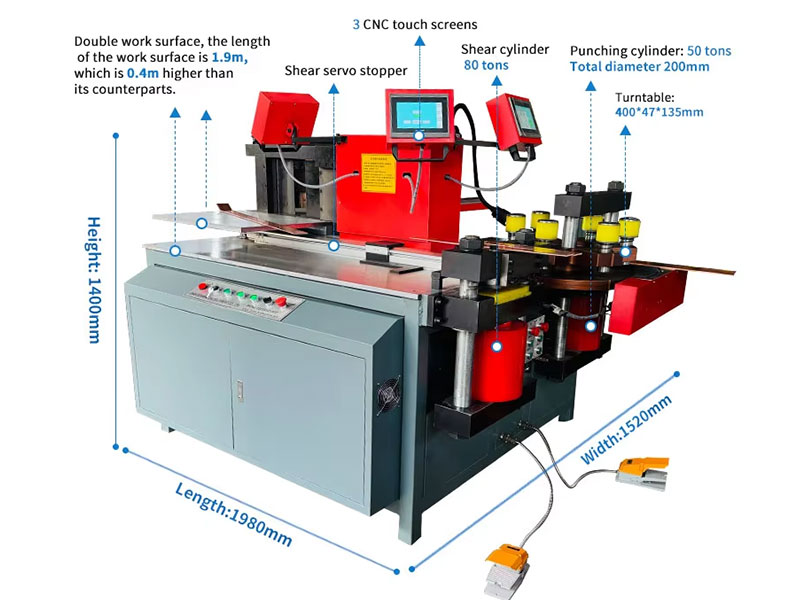

Bending accuracy ±0.2°, bending scale stroke 1000mm, punching scale stroke X-axis 200mm and Y-axis 1000mm. With automatic feeding, multiple holes can be punched continuously without repeated disassembly and assembly of busbars, greatly improving efficiency. Shearing scale stroke 1000mm

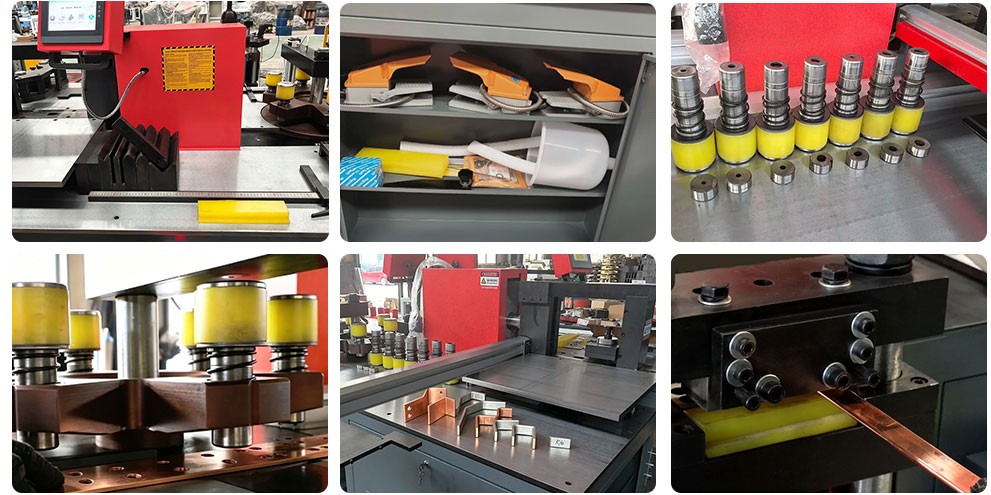

The repeatability positioning accuracy is ±0.02°. The standard molds are complete: round holes Φ7/Φ9/Φ11/Φ13/Φ17/Φ21, oblong holes Φ13×18, Φ17×21, Also comes with 2 sets of flat bends.

This fully servo positioning busbar processing machine uses servo motor + high-precision screw drive to achieve fully automatic and precise positioning of the X and Y axes.

Compared with traditional manual positioning, it is faster, more accurate, and more consistent. It is especially suitable for large-volume, high-precision copper bar processing.

Full servo automatic positioning: No need for manual calipers, one-click input of dimensions, automatic positioning, accurate and stable positioning.
