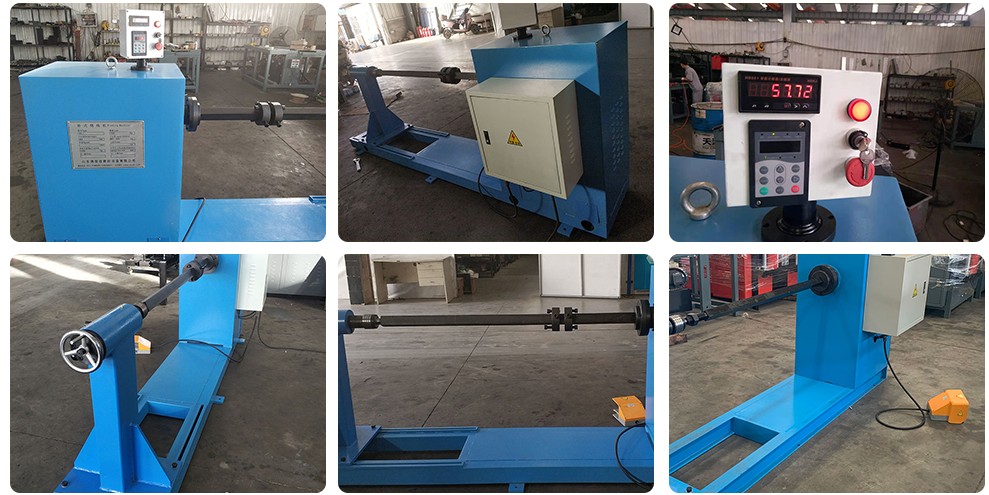

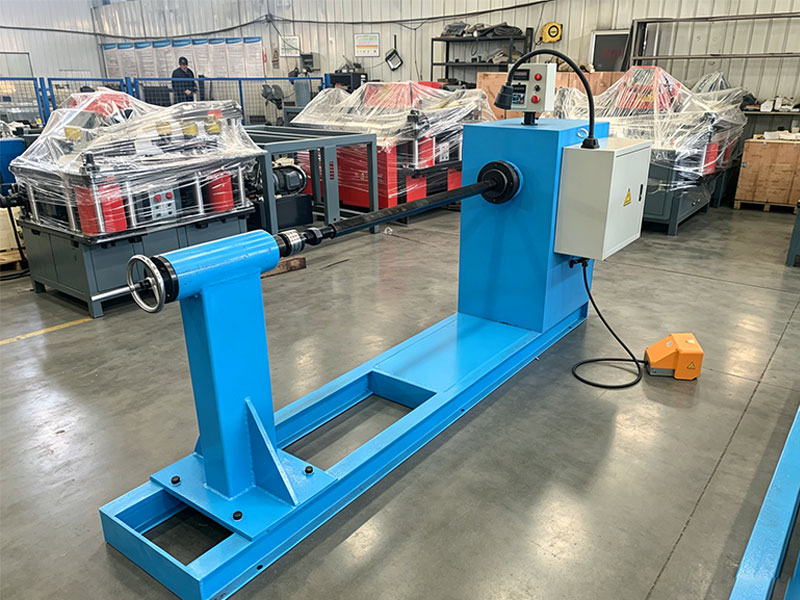

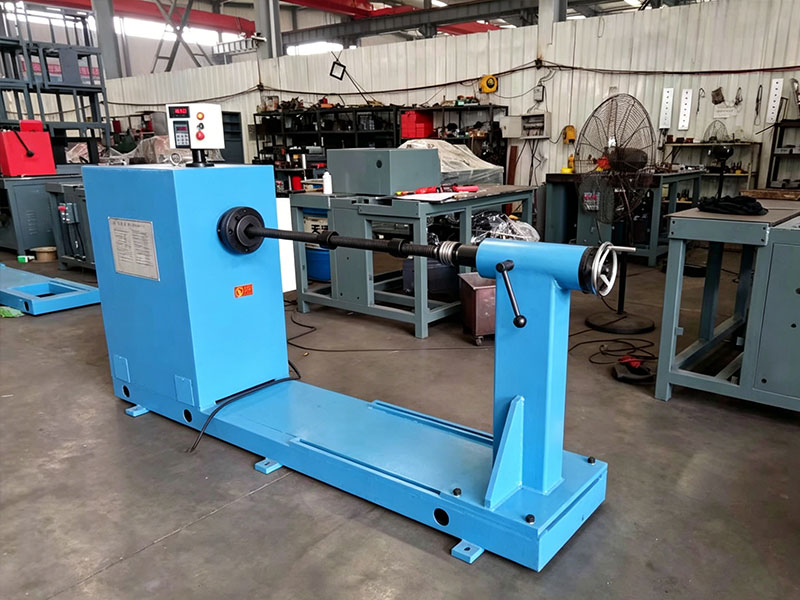

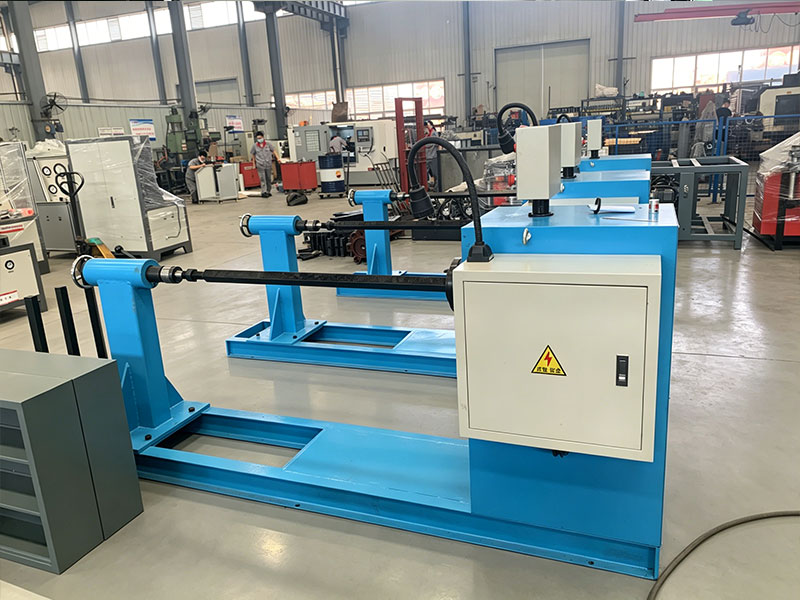

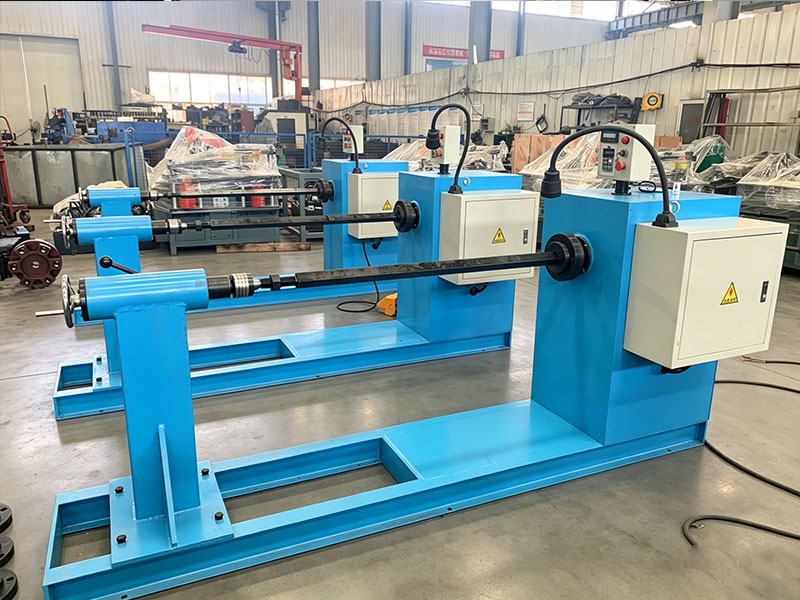

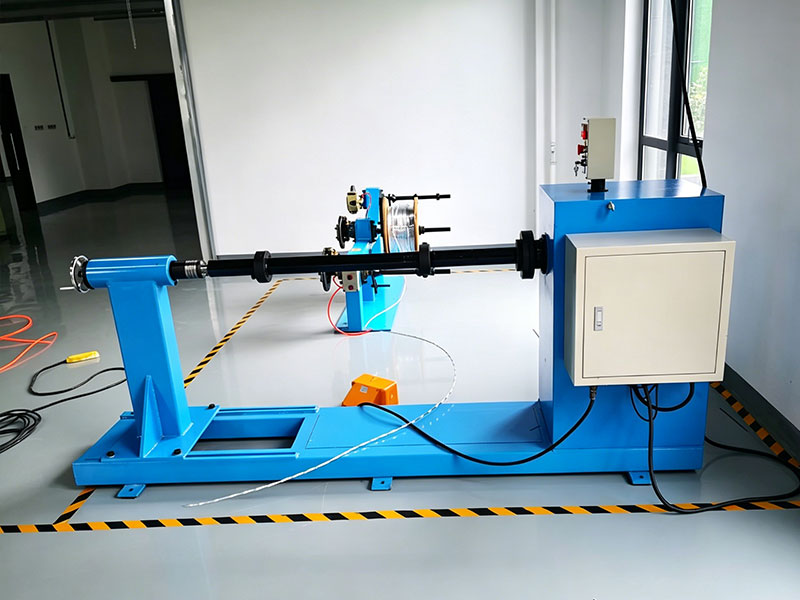

DXJ-RX2T Horizontal Coil Winding Machine (2 Ton)

Model: DXJ-RX2T Horizontal Coil Winding Machine (2 Ton), Transformer Winding Machine, with neat winding, stable speed regulation, and fast efficiency.

Suitable for winding high and low voltage coils of reactors, power transformers, and other similar coils.

Product composition

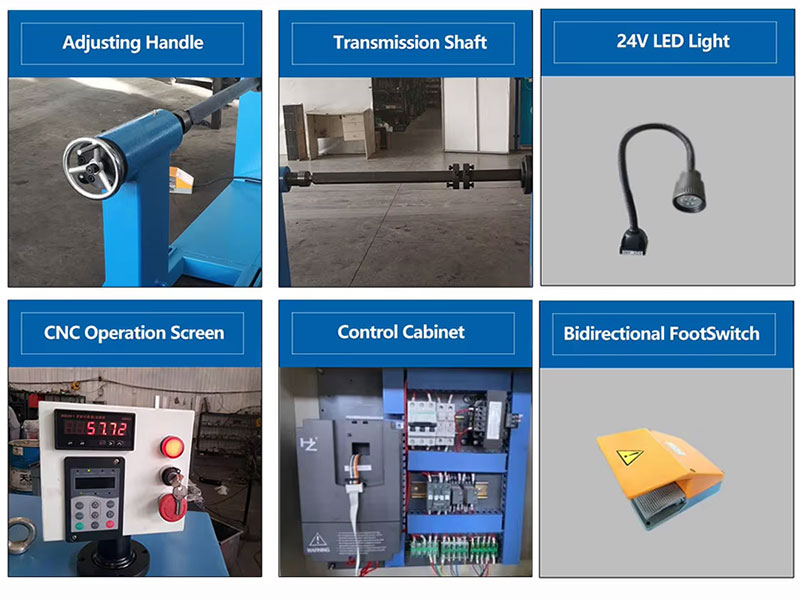

The device consists of a main chassis, guide rails, rear tailstock, and electrical controls

Product Features

·The mechanical transmission part of the winding machine is located inside the headstock box, and the transmission part is installed on the operating side of the headstock box. Realize high and low changes in spindle speed through the variable speed lever.

· The winding machine adopts a frequency converter to achieve stepless speed regulation, with smooth start-up and constant torque. There are three positions for adjusting the gear lever: low speed position, neutral position, high speed position, set the number of turns, and automatic parking.

· The machine is equipped with an automatic brake device to prevent reversing when the winding stops. The button station is centrally controlled, and the start and stop of the spindle disc are controlled by foot switches or buttons.

· The machine can preset the number of coil turns, control forward and reverse rotation, and the electronic reversible counter has a forward and reverse counting accuracy of 1/10 turn, with power-off memory function.
