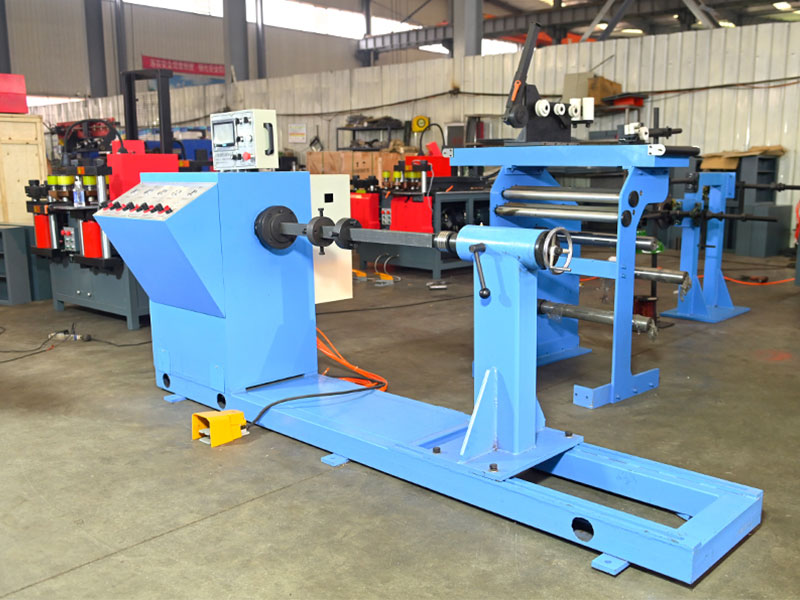

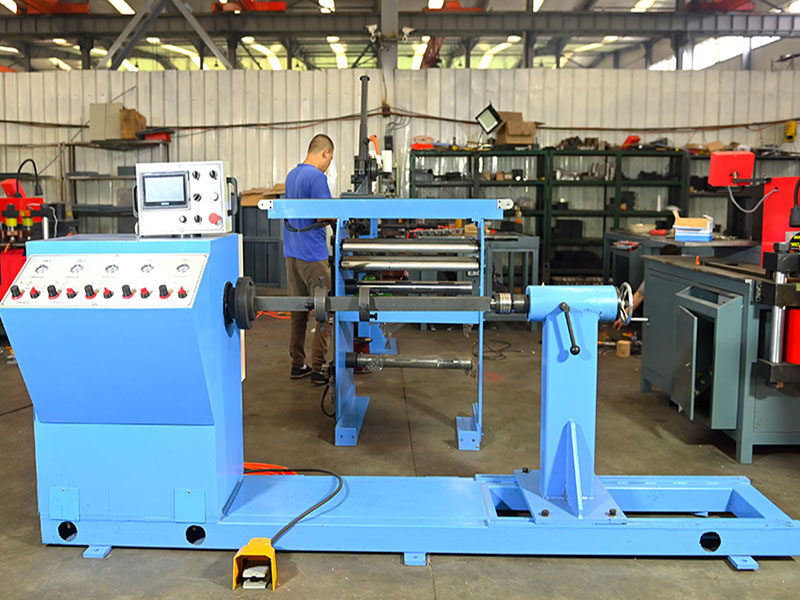

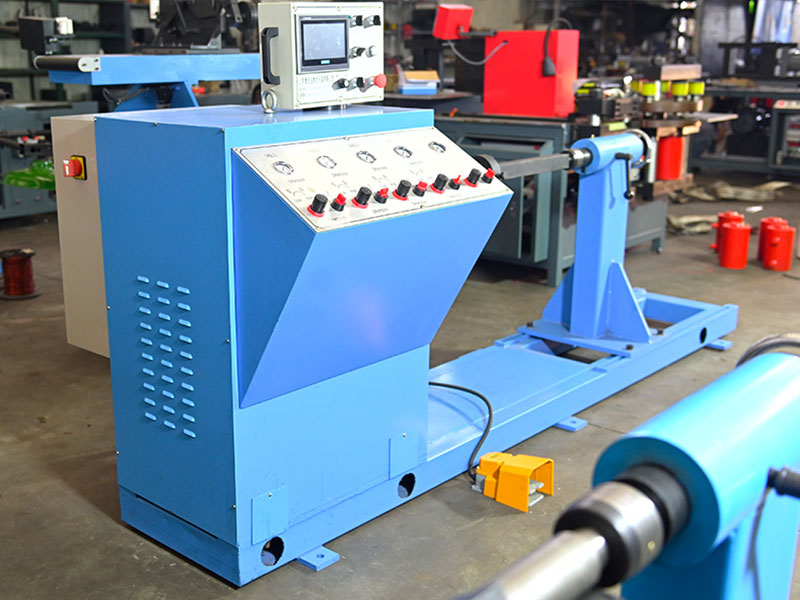

DXJ-RX800 Automatic Toroidal Coil Winding Machine

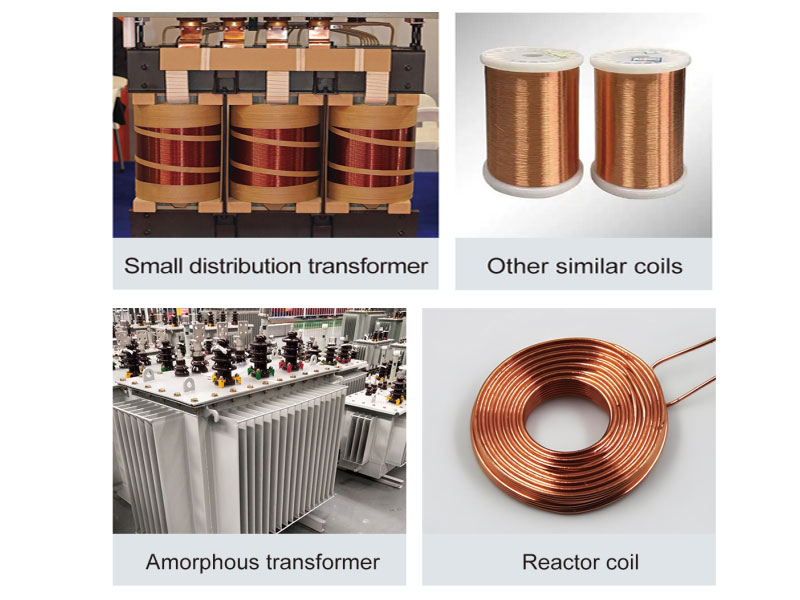

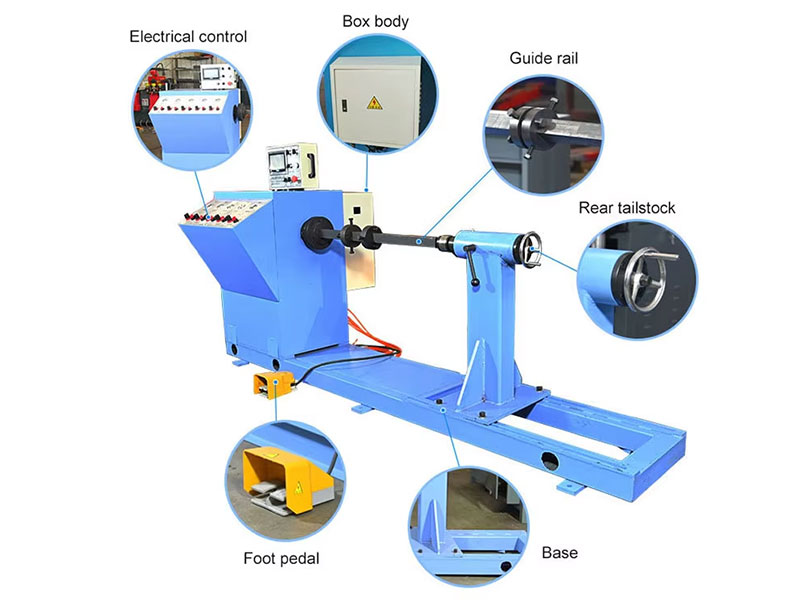

The CNC automatic winding machine integrates a main unit, base, automatic winding frame, interlayer insulationdevice and electrical control system. It is suitable for winding small and medium-sized distribution transformersamorphous transformers, instrument transformers, reactor coils and other components

Product Features

·High-efficiency and low-noise transmission system: Hard-fabric gear mechanical shifting system, featuring high transmission efficiency and operating noise ≤70dB, combining performance with quietness.

·Precise and stable frequency conversion speed regulation: The electrical side is equipped with a frequency converter to achieve stepless speed adjustment, allowing flexible regulation of starting and braking states.

·Smart Servo Winding: Servo motor + PLC control, imported ball screw + linear guide, touchscreen operation, precise synchronous winding and laying.

·Flexible Tension Adjustment: The lay-off tension is adjustable, paired with an pneumatic clamping device, to accommodate various wire gauges and diverse working scenarios.

·Precise error control: Adjustable wire spacing with compensation for wire diameter and manual correction to minimize errors, ensuring tight and uniform coil formation.
